| สถานที่กำเนิด: | จีน |
| ชื่อแบรนด์: | MIROC |
| ได้รับการรับรอง: | ISO |
| หมายเลขรุ่น: | HD709 |
| จำนวนสั่งซื้อขั้นต่ำ: | 1 |
|---|---|
| เวลาการส่งมอบ: | 20-30 |
| สามารถในการผลิต: | 3000 |
| คำสำคัญ: | อะแดปเตอร์ก้าน | ด้าย: | T38/T45 |
|---|---|---|---|
| กระบวนการผลิต: | กำลังหล่อ | การรักษาพื้นผิว: | คาร์บูไรซิ่งพื้นผิว |
| วัสดุ: | เหล็กอัลลอยด์ |

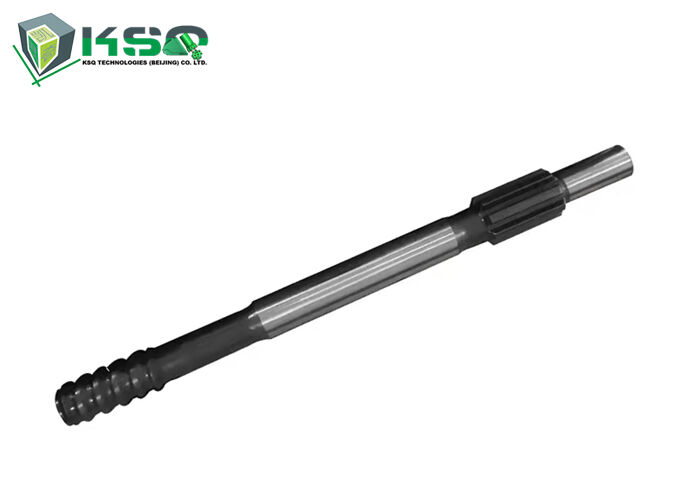

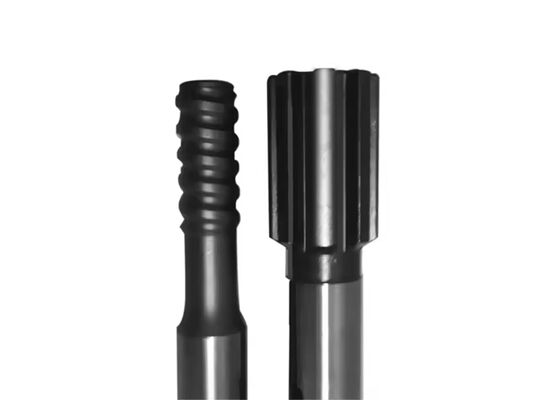

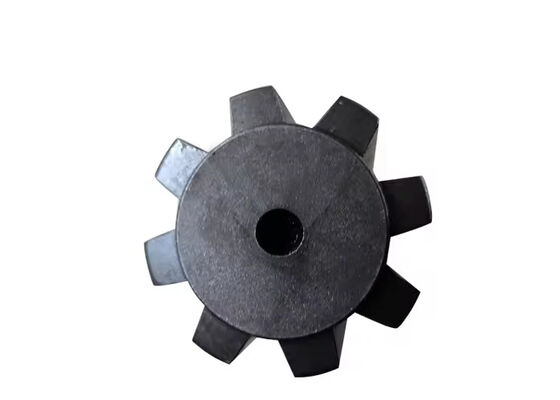

Shank adapters are used for transmitting power from the rock drill to the drill stems. Generally there are male threaded shank adapters and famal threaded shank adapters. Male shank adapters are more populaer than famale shank adapter. Male shank adapter are generally suited for drifting, tunneling and extension applications where high stresses are present. Females shankadapters are used when the drilling space is limited.
shank adapters ensure a quality drill string interface to the most exacting industry tolerances. Built to seamlessly interface with hydraulic and pneumatic drifters and top hammers, our shank adapters come in a full range of industry-standard thread configurations. Our precision grinding process ensures straightness, and our tools are fully carburized with an advanced heat treatment.
Different shank adapters are available, like Atlas Copco, Tamrock, Ingersoll Rand,etc. Also for the same drill machine, due to different applications, the shank adapters can be different length and different threads.
Atlas Copco (COP1238, COP1838, COP1032 and etc)
Furukawa (HD715, HD612, HD609, PD200 and etc)
Ingersoll-Rand (VL140, VL671, YH80A and etc)
Tamrock(HLX5, HL600, HL500, HL300, HL 700, HL850, HL1000, HL1500 and etc)
| Product Name: | High Quality and china factory! shank adapter |
| Description: | High Quality and china factory! shank adapter drills Shank adaptor is used for transmitting power between drill machine and drill stems |
| MOQ: | 1 Piece for testing and trial order |
| Thread: | R32,R38,T38,T45,T51 |
| Length: | 300mm-800mm |
| our shank adaptors are available for : | World top brand(COP1238,COP1838,COP1032 etc) Furukawa (HD715,HD612,HD609,PD200 etc) Ingersoll-Rand (VL140,VL671,YH80A etc) Tamrock(HLX5,HL600,HL500,HL300,HL700,HL850,HL1000,HL1500 etc) |
| Furukawa HD 709 | ||||||||
| Thread | Length (L) (mm) | Diameter (D) (mm) | Diameter at piston strike face (mm) | Spline type | Spline length (mm) | Spline diameter (mm) | Spline dimension (mm) | Special feature |
| T38 | 620 | 45 | — | Straight | 93 | 62.75 | 9.67 | Standard |
| T45 | 620 | 45 | — | Straight | 93 | 62.75 | 9.67 | Standard |
